Hendershot Project

Newer Research on the Hendershot Project is now also available here:

Hendershot Effect Research Center (HERC)


Collection of Knowledge:

Hendershot Fuel Less Collection (HFLC)


The documents below from 2013 did not result in a working unit, but are maintained at this time for reference. Much data there is accurate as to the original unit.

2 - 29 - 2020
New document added:

Hendershot Buzzer Fundamentals

7 - 14 - 2013
Refresh your browser to update your page, the document is evolving.
(Sensing experiment added 7/15/2013 - Good results!)

7 - 22 - 2013

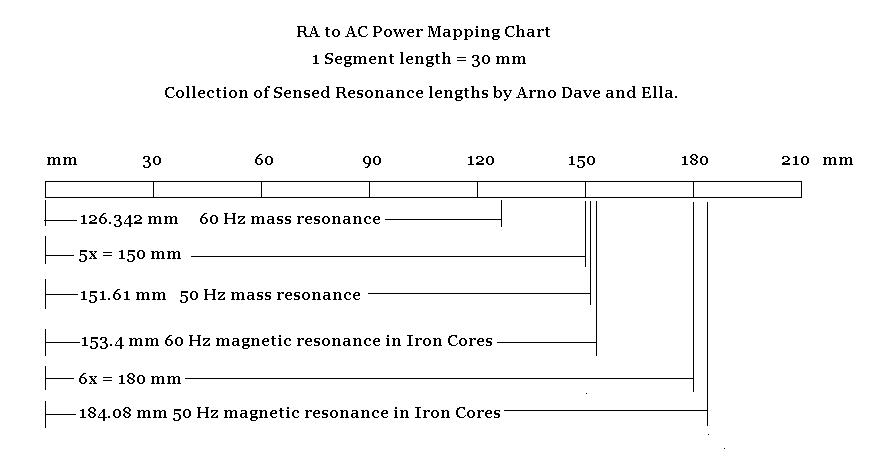

Note: I have a 69 kv power line crossing the front of my property, running West to East, which powers the town. It is approximately 75 feet from my working bench, and 50 to 60 feet up in the air.
I have surmised the presence of this line may be effecting my sensing reading, as discovery of the 6.1" 60 Hz fractal it radiates. Most people are not aware, that a power line is a scalar canceling device. If balanced, it produces a vibrational component that is quite powerful. Because the unit is designed to produce 60 Hz makes it easier for me to design parts, however it raises the question, is the power I am creating coming from the power line? [If I set two of the dowel pins at a separation distance of 15.485745 mm = 6.09675 inches center to center, I feel them vibrating already with energy.]

I took the 10 cm bar outside to the front yard where the power line runs overhead. When I hold the bar level it vibrates up as I point it North and South. I pointed it directly at the power line, and did not get anything. This is promising, indicating it is the earth alignment I am feeling and not likely the power lines.

8 - 12 - 2013

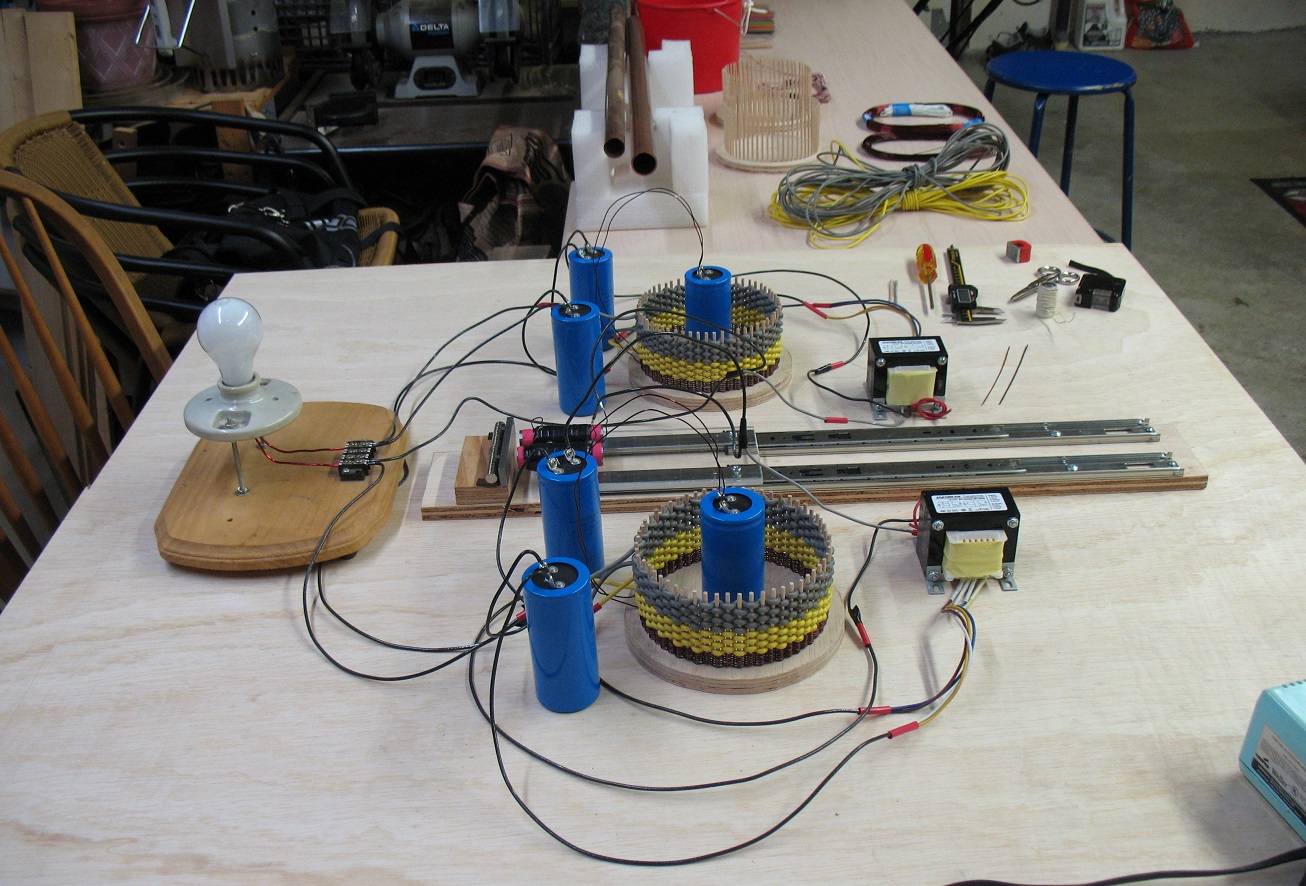

Main pieces constructed and positioned, discovered the Basket weave coil if set correctly in the vibration cone of the magnetic buzzer generates an energy form that feels very electrical and intense, but will not yet move a meter. Adjustment of the 8cm cores on the slider rails does manipulate this energy form altering both "tension" and "frequency" on the copper wire of the coil.

3 - 6 - 2014
To date I know of no replication efforts that have produced favorable output power from this device.
We did however notice a larger then normal voltage gain over the turns ratio on the basket weave coils.



Preface

I come into this research, with specific tools which are simple. A scalar bismuth coil, with Function Generator for measuring mass resonance frequencies. 3 Stainless Steel calipers for measuring wavelengths of vibration. Some quartz crystals for sensing lines of vibration. Pineal senses.

Bismuth has a very high electrical resistance, and is ideal for sensing mass resonance at the nuclear levels. The SS calipers can also measure the 60 Hz EM vibrations from the electron shell layer of the atom.
I believe that between these two self sustaining atomic layers, we can "tap in" and place our load. The only self sustaining form of power I am aware of is Vibrational feedback.

Is it possible to comprehend what Hendershot was doing? Possibly by comparing what we now know about vibration?

Photo of old unit

"I can extract electrical energy from the earths magnetic field by using two wire sizes on a coil."

David Hamel showed us that he could spin up a ball bearing using only a magnetic device and careful positioning or "distance tunning", suggesting there is a motional powering vibration available from a magnet.



Research  Section

Original Hendershot Materials in Depth


Basket Weave Coils

Since this most impressive Basket Weave coil got my attention right off, I will start here with my vibration research.

The Coil Diagram

It is generally assumed the dimension listed on the diagram is from center to center of the dowel pins, although the diagram is not clear on this. The arrows stop inside the dowel pins.

Here is a list of known fractals that land in this area of dimension.

14.960 cm     =    5.890 inches      Source field 80x
15.00 cm        =   5.9055 inches    Ra Fractal
15.01049 cm  =   5.90964 inches  Copper Isotope 1 NMR 17x 8.8297 mm
15.08125 cm  =   5.9375 inches   Hendershots dimension
15.0948 cm    =   5.94283 inches  Iron Isotope  NMR  14x 10.782 mm
15.13344 cm  =   5.9580 inches    Copper Isotope 2 NMR  16x  9.4584 mm
15.147 cm      =   5.963 inches      Source field 81x  1.87 mm
15.246 cm      =   6.00236 inches  Copper atom Nuclear platonic vibration background field 21x 7.26 mm
15.26985 cm  =   6.0117 inches    Schuman Fractal
15.340 cm      =   6.039 inches      Electric motor 60 Hz Iron magnetic vibration  - Source field 82x 1.87 mm
15.485745 cm =  6.09675 inches  Lamp dimmer 60 Hz Copper electric vibration
15.521 cm       =  6.111 inch         Source field 83x 1.87mm
15.7 cm           =  6.1811  inches   Electric Field derived from the RA fractal diameter using 90/57 ratio on a circle of 57 x points [19 x 8.26316 mm] [NS sensitivity]
15.708 cm       =  6.184 inches      Source field 84x  1.87 mm


Cut a soft iron tie wire to 15.340 mm = 6.039 inchs and hold it near an electric motor in the US. Wow!
Cut one to 15.27 cm and feel the Schumann resonance. Lots happening in this small area of the spectrum.

Coil Dimension Diagram
A dowel pin of 1/8" will set the wire on both sides of several of these resonant fractal dimensions.


57 Dowel Pins

PI

[360 degrees / 2 pi  =  57.2977....]        [180 degrees / pi  = 57.2977...]         [90 degrees / (pi/2 harmony ratio) = 57.2977...]

A resonant T field crossing this coil dimension at the Ra wavelength, will split off [~pi/2 degrees] on each quadrant of it's circle, as the field passes through it in one direction. [West to East]
Time of one 360 degree rotation is dissected by ~2 pi. Thus pi/2 is harmonic in all four of the circles quadrants, with the magnetic field on the coil making one cycle of 360 degrees in real time. This is a Tempic field resonance ratio.
Space however is trisected into 19 platonic form triangles. 19 x 3 = 57, the lowest down shift of vibration energy from this configuration is the triangle. [smallest prime factor 3x]

When vibration intersects at 60 degrees in triangle form, the energy is pulled into the EM side, and the vibration cancels.  This was shown with two resonant rods and a copper sphere, way back there.
Light Technology  See the section on 60 degree sensing of energy. Circles and triangles.
The [Vibration to EM] conversion wavelength may be calculated as the side length of a triangle, on a circle of 150 mm [= 129.9 mm]

There will be 19 of these as standing vibrational waves all slightly out of phase on the large coil as the Ra fractal vibrates through the coil system.
No matter how you position the coil flat on the table, the East West line will cross it.

PHI

[360 / 4 phi  =  55.624]  56 is an even number so 57 is the closest for this range of dowels, but with pi at 57.2977 we are then between them in the active zone of power.

[360 / pi  =  114.59 ] I might expect phenomena at 113 dowels then also.

[360 / 2 phi  =  111.248 ]  113 also in this range setting between PI and PHI in the orbital pressure zones???

Note: From wire cutting experience it can be shown that a Phi ratio between two resonant rods will produce repulsion or pressure to move away, and a pi/2 ratio will produce harmonic attraction, or a path of least resistance. In the area between these two ratios is the orbital organizing force. pi/2 = 1.570796   and    Phi =  1.618.  If you cross the Phi to further out, you will be pushed outwards into the next orbital ring, however if you are near the pi/2 you will pulled towards it from either side. PI is necessary for a self sustaining system in the vibrational field, and Phi is necessary to create oscillations around it.


Basket Weave Coil  [~ 2 PI degrees]

Coil Diameter  5.9375 inches  =  15.08125 cm

Coil Diameter 15.00 cm  [Ra Wavelength] [Mystery video] [a difference of .08 mm less then the thickness of a wire]

The coil has 57 each 1/8" dowel pins, around which the coils zigzag oppositely on each layer of wind. 360 degrees / 57 = 6.315789... degrees, and this is our polygon angle or the angle between two adjacent dowels. The separation angle is very close to [2 pi  =  6.283185....], but pushing it a little over towards a 4 phi, and placing it inside the critical orbital ratio spread to pull inwards slightly with torsion towards a self sustaining resonance. Now a quadrature split, [ 360 / 57 ] degrees / 4 = 1.578925  and a pi/2 harmonic ratio is 1.570796 which will sing and oscillate itself up forever with vibration when injected over two concentric tubes. Here we then see on the 4 sections of the circle a harmonic ratio. Hendershot has found a tempic field resonance in the angular alignment of the circle, but a vibrational one. One so small I would not have thought to locate it in this way. It is my belief he was looking for a ratio like this, or that he could actually feel it by tuning adjustment, from the scribbled notes he left.

We now calculate the spacing between the dowel centers, and see the surprise of  ~pi hidden inside it. [He is riding the phi / pi orbital ring of the Ra fractal "side to side" with the wires.]

This is the formula to calculate the length or separation distance of each of the dowel pins. The polygon side length or FS of a 57 sided polygon. [one document says they are to be spaced equally, and one drawing [above] shows a space larger on one of the steps probably due to inaccurate drawing ability???]

Diameter  =  Fractal Length [FS] /  (sine (1/2 the angle))
Diameter  =  Fractal Length /  (sine (3.1578947368421052631578947368421)) Very close to pi, and a stable self sustaining oscillation ratio for a vibration. [Sine of pi degrees]


Distance Between Dowel Pin Centers - 57x polygon

FS = Diameter * sin (3.1578947368421052631578947368421))

[Diameter = 5.9375 inches]     FS = 0.32708 inches

[Diameter = 150.00 mm]         FS = 8.26316 mm

It would seem that choosing 57 dowels was not a blind guess, but a very intelligent thing to attempt.


Compare against a perfect PI for the 57 points with a small gap at the end of each 19x set

FS = Diameter * sin (PI)

[Diameter = 5.9375 inches]       FS = 0.3253967 inches

[Diameter = 150 mm]               FS = 8.220549 mm

This difference is very tiny -0.042611 mm less over each 1x distance.

x19 = 0.809609 mm extra at each of the triangle points.

On the whole circle we would be -2.428827 mm short, almost the diameter of one 3 mm dowel and may explain the diagram above.

Keep in mind the Vibrational resonance at the node point of the fractal will be where the two wires cross.


Sensing Experiment

[This little test answered questions about this coil, and about the device in general. I believe it reveals a 1x fractal of importance.]

Setting my first caliper to 150.00 mm, and holding it in my left hand. I feel the Ra fractal strongly in my body.
Setting the second caliper to 8.22 mm [perfect pi ratio] I can now feel the pi/2 harmonic from it, and it feels very smooth and nice.
Changing the second caliper to 8.26 mm I now feel an "electric feeling" that tingles all the way up my arms!

What this proves to me is that we should set all the dowel gaps the same, at 8.263 mm spacing, and not try to fit exactly to pi ratio, with a gap at the end.
The more accurate we get the "wire crossing positions" to this distance apart, the stronger the electric feeling will become off the RA fractal.
It is likely , that a person tinkering with this in a junkyard full of old electronic components, would be going by feel of the energy to come up with a 6" diameter basket coil system.
If you want to feel the Electric fractal more strongly, set your caliper to 19x 8.26316 mm = 157.00004 mm and zone out on that one! Turn it to true North, and feel it flare up strongly. It does not flare up when turned to East West nearly as strongly. This is likely the dimension that Hendershot had discovered in his compass work. Turned to true North it becomes "light" at the pineal and electrical tingles. This is the actual length of 1/3 of the 57x polygon outer edge, and one phase of the EM we can expect to appear in the coil system.


Hendershot Motor

This now helps me understand how he could get a motor to spin up, using only "feel felt" shaft length on a rotor with no stator field! The first motor had to be aligned with True North to spin up!
Now to modify the motor system for any angle, one needs a tunned coil with about 57 wraps on every angle, and then a brush on the shaft in the correct location to vibrate up the shaft of the motor with this energy. I can see how this led right into a stationary coil system as it progressed for him. I would try a 30 mm diameter spherical coil, if not a Basket wind at 30 mm, then locate a point on the resonant shaft where it would vibrate up at any angle.

Hendershot was definitely a machinist to have located electrical energy by using accurate dimensional length! Showing a mechanical aptitude, and a "feel felt" sense.
If you build his motor to correct dimensions, then it will likely work. His motor used 5 magnetic overlapping prongs, an odd number, and this is the pattern he gave us once you have the fractal length to work with.
He stated he could build one for different RPMs. The RPM would be constant, and I am guessing it is based simply on the number of poles, always odd.
The concept of having the iron parts carry energy in a motor shaft is not new. Now having felt this energy I believe it is real.

A Fractal is Derived, [out of the RA fractal]

[From Hendershots dimensions]

8.26316 mm
 = 1x   Earths Electric Field Fractal [at the crust]
19x = 157.00 mm   =   15.700 cm
57x = 471.00 mm   =   47.100 cm


The next key - Electron Quantum Pattern


Wire Wraps  [720 degree opposing fields - electron quantum pattern]

Coil diagram 2

One complete turn, is actually two times around the circumference to get back to the starting point of the wind. Thus if I say 12 electron winds, it is actually 24 times around. 12 inside and 12 outside each dowel. [This is the electron path discovered way after this device, 720 degree rotation with both in opposing spin, in current QED quantum physics texts.]


Hendershots Inner Capacitor

I marked in the cm values on each one also.

Capacitor Drawing

The capacitor is home made, on a 5" diameter SS tube. A complex process of removing the innards of a capacitor and sticking them on the outside of the metal tube trimmed to special lengths, then placing this inside the Basket Weave Coil system, in series with one of the coils. [L1 coil]
Aluminum NMR 15x = 130.1535 mm = 5.124 inches [1x = 8.6769 mm NMR]
Copper Platonic 35x = 127.05 mm =  5.001968 inches
Source field 68x = 127.16 mm =  5.0063 inches



Device Layout Diagram


Number 10

In Hendershots circuit he was using capacitors that have two internal capacitors with one common ground pole. 40uf / 80uf with ground pin. These were out of old tube radios and had a voltage of up to about 450 volts DC in this case. They could be gotten from a garbage can in any large city at that time, from an old radio, but were polarized and so often would break down and overheat. Electrolytic, they had a nasty acid coating inside that would eat the tin away over time and why he switched to a stainless steel inner tube.
The diagram shows only two capacitors, but there are actually 6 there including the home made one inside the Basket coil, and two in each of the cans shown.
Later photos show he changed this to 3 external capacitors above each basket coil.

Number 2

This is at present a puzzle to me, and I have not found it described anywhere as of yet.

Hendershot Coil Stack and Wiring Diagram

Hendershot Circuit Drawing


In this diagram we see the colors of the weave coils on each side of the diagram used by Hendershot.
Bottom coil is enameled wire [points 22 & 23] 64 turns 24 Gauge.
The Yellow [20 & 21] L1 and Red [18 & 19] L2 wires are PVC  12 turns 20 Gauge insulated.
The outer coil L4 [26 &27] is 14 turns of 28 Gauge.
The transformers are 120 to 24 vac or 5 to 1 ratio.
The dual capacitors share a common ground, and were electrolytic HV DC.

Notes:
In this diagram, the coils are all labeled oppositely to the original diagram we see below. L1 was the separate coil to the inner capacitor, and here it is shown as L4.
Left side of the circuit L-3 top pin 22 is wired to the capacitor 40 uF then to the cross over to the other coil L-3 top pin. This is different wiring then the older drawing below.


Oldest Circuit Diagram


Original Circuit Diagram

In this diagram, the feedback wires from the load are both going to the left side of the diagram, and appear to be reversed of the above diagram where they are drawn to the right side.
Wiring is almost a mirror image between these two diagrams, but note major difference where the top of L-2 on the left now wires directly to the top of L-2 on the right.
A little patience is in order to study this diagram to the point of "familiarity."

Makes one wonder how both connection schemes could ever work the same from the same value of components! If you are looking for a resonance at 60 Hz, it is not there electrically at all.

Diagram from the Mystery Video Compared

Mystery circuit removed, as it was not authentic, and did not work for anyone who built it.


Comparing the Materials Lists


Materials List Comparison


Wire -  Pattern is the 4 AWG Step  [1.589 x diameter ratio / or 1.578 x new design]

Hendershots List

100 feet  28 AWG  Enameled            0.32004 mm diameter           L1 Coils         [Eliminated in new design]   2 ea [14 turns]
500 feet  24 AWG  Enameled            0.51054 mm diameter           L2 Coils         [L1 in new design]              2 ea [64 turns]
250 feet  20 AWG Yellow and Red   0.81280 mm diameter           L3 L4 Coils    [L2 L3 in new design]         2 ea [24 turns]

Hendershot is jumping 4 American Wire Gauges each time.

This causes the Diameter to increase by 1.592 x     [PI/2 = 1.57079    PHI = 1.618] [He found one that is in the zone!]
Cross sectional area jumps by 2.53459 x the square of the diameter.

The sum of two wires diameter stacked on each coil [quantum electron is 2 wraps] is 2x of these,
The sum of the diameters will increase by 3.184 x ratio             [PI = 3.14   2 Phi = 3.263]
Cross section
area sum on each coil will increase by 5.06918 x ratio   [Very near a 5x jump]

We can see what Hendershot was thinking in this design, he knew physical dimensions!

I refer to "In the zone" [PI/2 to Phi range]
[PI/2 = 1.57079    PHI = 1.618]



A prime fractal length 8.26316 mm

8.26316 mm  = 1x   Earths Electric Field Fractal
To stack this fractal we use 19x and 57x strings or stacks.


Wire Geometry Fractal

Diagram showing one edge of the Basket weave coil system and two wires on it to represent a quantum electron with 720 degree rotation.
The two points where the wires cross, are laying on the RA fractals ends, the radius of the coil 7.5 cm to center of circle.
The distance between these two points is 8.26316 mm, as tested with caliper does vibrate up from the background field.
Many of the active fractals are crossed in this area of spectrum.


Wire Accuracy

I started measuring some of the wire I have around and discovered it is not as accurate as the wire charts would lead one to believe.
My 14 gauge wire measured at 1.5 mm, a bit less then it should be. My 18 gauge measured at 1.04 mm [Could be the enamel insulation taking up .02 mm ???]
This drops the ratio between them way below calculated expectations =  1.4423 ratio.


Dowel Size

Wire Length Diagram

Distance between the dowels is 5.08816 mm for the wires to cross in.
Dowels are 1/8 inch thick.1/8 " =  .3175 cm  = 3.175 mm

The actual wire length of the wrap on the circumference of the coil should be circumference * 1 / cos (24.035 deg)
Circumference = 150 mm * PI
150 mm *PI / cos (24.035 deg) =  515.97 mm per wrap of wire.
This would be the very smallest it could be, and probably will come out larger with wire insulation.
64 wraps *  515.97 mm =  33022.4982 mm = 33.0225 meters of wire. Hendershots L1

If we reduce to 3 mm dowels = 511.99 mm * 64 =  32.767 meters of wire

Smokey is seeing 528 mm per wrap on his .95 dia wire. expectedly a bit longer then Hendershots 0.510 mm wire at 515.97 mm per wrap.

12 wraps = 6.336 meters of wire

Note:

In physics the gyromagnetic ratio of the electron is 2.002319304386 radians
This is an angle of 114.724445 degrees. Which means that an electrons spin axle is setting at 65.27555 deg of it's magnetic field pole alignment.
The equator of it's spin is setting at 24.724445 degrees of the magnetic field pole.
Interesting that both the angles are very close to the angles the wires pass through in the above drawing showing the Hendershot dowels and wires crossing.


EM Consideration


Wire Fields Diagram

When viewing the magnetic field of a wire loop, it is discovered it will magnetize a nail anywhere in side the physical loop of the wire.
It will not magnetize a nail held anywhere outside the loop of wire. By having each loop also add a small circle to it, then every dowel will experience 1/2 the magnetic field intensity having only 1/2 the winds running out side it, the 1/2 that run inside it will only contribute to the magnetic field inside the large coil loops.
The magnetic field is then split in intensity, to 1/2 it's flux levels just on the outer dowel ring of the coil system. Inside both wires it will have 2x the magnetic field density.

Construction and Experiment Section



Templates for Construction


Hendershot_files/KS-Bohrschablone.pdf

Circle Of 57


Iron Resonator

8 cm  Core    10 cm  Bar

Calculations and Testing of the lengths from the mystery video.

Core slugs 8 cm

8 cm  / 2.54  =  3.149606 inches
3.149606 in / 2 =  1.5748  inches   [familiar number] Why couple energy to inches??? Connects into the ancient pyramid system pulling energy directly from the Aether at 12x octave. The foot comes directly from the pyramids, and the 12x octave of vibration.

Resonator Bar  10 cm
15.7 cm Electric earth wave  / 10 cm resonator bar  =  1.57 ratio
A 10 cm iron bar should vibrate up to the Earths Wavelength if aligned NS landing inside the zone off the electric wavelength, very close to self sustaining harmony ratio. When coupled to the Basket weave coils energy correctly this bar should vibrate up.

SS Caliper Test

Set the caliper to 100 mm very accurately.
Hold it out in one hand and slowly rotate it pointing around true North South alignment.
I feel a strong flare up of the energy, most noticeable, peaking on true North.

Lets take a look at one of Hendershots units and measure the bars proportion to the Basket coils diameter.

Photo Of Hendershot Unit

Carefully measure the diameter between the Dowels on the large coil, and then divide this length by the length of the resonator bar.
Here is what I get:

32.83 mm / 28.27 mm = 1.616 ratio and very nearly a perfect Phi ratio
Although I can not measure the actual length from this photo, knowing the diameter of the large coil is 150 mm I can calculate it.

Hendershots resonator bar is 150 mm / 1.616 = 92.821 mm = 9.282 cm   Somewhat smaller then the new design on the video at 10 cm
If he was shooting for perfect Phi it would be 92.7 mm or  9.27 cm long.

Hendershots bar will resonate at any angle, the new design will have to be coupled to the EM wave from the coils to resonate or pointed NS. Best guess.
The new design however will generate a more electric like field then Hendershots did when coupled to the earth NS alignment.
Both are however related into the the RA fractal by a ratio that lies in the Zone. The PHI Hendershot used will be harder to start but may produce more power when working.


Sensing Test

Set your SS caliper to 97.2 mm, feel how the tension comes up as you tune through this length.
This fractal will produce this tension any direction you point it!
That is the energy Hendershot was using in his resonator, and it appears to be on both the bar above and below the two coils.
It creates a repulsive energy, and a tension in iron.

Parts Arrival

Parts Photo

The coil cores, resonant bar, and drill alignment tool made for me by Ron Pugh [machinist], setting on the 57 angle drawing made by John Barry [math expertise].
The group has responded with record speed for this project, I am grateful to be a part of this experiment.
7 - 22 - 2013

Scalar Bismuth Coil as a Sensing Tool

Scalar Coil Photo

If you make a Scalar Bismuth Weave coil, it is one of the best sensing tools for vibration I am aware of.
It can be used with a function generator to locate the mass resonance frequencies of the resonator parts.
Hold the iron piece off the end of the coil and tune the F Gen while touching the iron piece.

It can also be used to locate the Magnets Precession Lines extending off its ends at about 45 degrees.
Using the scalar coil with fingers on opened wire ends the magnetic cone can be felt to several feet beyond the project.
Align the Bismuth core pointing at the outer edge of the magnet and slowly move outwards, scanning back and forth to locate the active vibrational cone line from the magnet.
Bismuth will vibrate up with a very heavy feeling, much lower in frequency then a quartz crystal.

Construction of the Scalar Bismuth coil is found here

A quartz crystal or crystal sphere can also be used to locate these vibrational lines of force, if you are sensitive in the higher frequency ranges.
I believe that locating the angle of the magnetic fields precession may be critical to understanding how the Hendershot Generator works.

Resonator Experiment


Resonator Experiment Photo

Left photo with a lite behind, to show the gap between the magnet and the bar created using thick pads of insulating material.
The Neo magnets were shimmed with smaller magnet at center to come out exactly the length of the bar at 10 cm.
The 80 mm cores were then rolled back and forth to locate the best positions for vibrating up.

There is an active zone inside where the bar touches the pads almost all the way to the center position, but drops off near where the pads touch.
I found a distance where I feel the vibration interacting between the bar and the 2 cores. There is another one a little wider that is pretty strong also.
When I bring a roll of 26 ga wire near the vibrating setup it couples nicely!

I then widened the spacers between magnet and bar [photo on the right], to reduce the tension on the bar, and the vibration seemed to increase considerably, as it dropped in frequency.
Now the 26 ga wire does not interact as strongly but 30 ga does. I can see there is possible adjustment on this that may be of use. Holding the roll of 26 ga wire near and then slowly sliding the cores back I hit a resonant point!
The tunning seems to work in this sense. There is a range of distance where the 26 ga couples, and another where the 30 ga wire couples.
Now I can see why the coils rigged to slide is a tunning system.

10 cm - Bar
8 cm - iron cores

Vibration Testing Mass Resonance

Vibration Test Photo

A scalar bismuth coil is used, with a function generator to vibrate up the various pieces. The coil cancels the magnetic field, and produces only a heavy vibration.
Surprised to discover the two iron cores at 8 cm resonate up at 30 Hz, and the bar resonates with a sharp tunning peak at 60 Hz.
As the core are moved closer and further from a magnet with 30 Hz vibration on them, a minute thump feeling is observed, where the attraction to the magnet drops very slightly.
It seems logical to me to then mount these on a sliding rail system for adjustment.

Resonator Node Points

When the 300 mm wire [see below] is connected to the bar two nodal points emerge on the sides between the magnetic pole and the inner cores.
Vibration is drawn into the resonator bar at these two positions.


Mass Resonance Coil Form


Dowel Pin Resonance

Hendershot, and the mystery video both agree on this dimension closely. Hendershot used 3 inch dowels, the video calls for 7 cm above the base.
Vibration testing shows that if a 7.5 cm wooden dowel is embedded into the plywood to the center of it's thickness the whole board vibrates up with a radiance.
The two posts then expose exactly 1/2 the wave for the coil to couple to in the vertical direction at 90 degrees to electron flow.
You will be able to feel the "glow" around these coils in the air, from the earths background energy.

Mass resonance always works from the center of gravity, or the center of the mass, where the energy can be tapped and manipulated.
The board is a ground plane resonator, and the dowels are 1/2 wave reflectors of the RA vibration.
This is not subtle, but very easy to feel when you get the entire board vibrating up accurately.

Wire Testing of Basket Assembly Dimensions


Testing With Wires Photo

The important thing to notice when feeling the wires is where the light nodes are positioned and where the segments of tension land between them.
When the 300 mm wire is bent on the ends, the light node appears at the center position of the wire form. This is the point of least tension.
The tension shifts to the corners of this form to the point on the basket coil where the dowels are tapped into the base.

Fractal Matrix Introduction

How wide to make a base for the coil.
We want the longest wave to appear on the dowels, so we do not want the base to down shift below 30 mm wavelength very far.
However we still desire a light node to appear at the center, so an even number is warranted.
There is only one that will down shift a bit but not all the way to 150 5x distance. It is 6 segments.
We will now test the difference between a prime at 7x and the 6x that we expect may be the solution.

30 mm = 1x
6 x = 180 mm
7 x = 210 mm

Now the two possible base dimensions I just calculated are tested against it to see which is the better choice for a centered light node with tension at the corners.
The 18 cm wire wins without a doubt. The 21 cm wire causes a pressure to form at the center pulling the wrong direction on the core light node.

Testing With Bar

Shows my final test for this using the heavy 150 mm Ra bar, with light nodes at the ends. Position the bent wire on center and light node meets light node.
Slide the two wires one at a time up to the base and feel the difference with a finger on the center of each wire.
The 18 cm mates up, but the 21 cm creates a tension at the center point of the wire that shoots all through the heavy bar.
The 21 cm will throw the pressure point  to the wrong place on the base of the coil.
18 cm is the correct distance to make the base of this coil, if it is to be set into a circular piece of wood. Best Guess.
The next photo is my base coil design to maximize down shift energy into the dowels, and take advantage of mass of the base of the coil to support this down shift of energy.

Frequency Gradient Chart
Looking at the frequency warp, we see at the bottom a compression field bubble, and at the top the opposite of this, as accelerating release of compression.
The dual cone gradient system again, which appears in many other designs as conical coils, or cones.

Vibrational energy should naturally flow down the outer sides of this coil seeking the lower frequencies, and electrical energy should accelerate up it, seeking to dissipate into the EM noise floor.
This gives opportunity to intercept both types of flows to set up a loop that can self sustain. Where the EM vibration crosses the T field in the range of  1.5709 to 1.66 there will be three vibration links that couple from top to bottom creating a looping at 24 levels of vibrational rings, causing a self sustaining bubble to form in the Aetheric medium. Best guess.

If there is a capacitor at the center, the gradient will be reversed at it's center. Vibration energy will flow to the top of it as raw torsion, as electrons are pulled to it's bottom as EM.
Note: the low frequency side of the capacitor at the top will be connected to the low frequency coil, at L1 position at the bottom.

Layered Fractals


 Resonant Coil Base Design 1.A - Plywood


Coil Base Design

To the best of my knowledge, this design will down shift a torsion field vibration into the dowels, at 1/2 wavelength of the RA fractal, placing the pressure nodes at the lower corners at the base where the lowest frequency will appear on the coils.
Not surprising it matches Hendershots design very closely!
The neat part now you can make these wires up and feel this for yourself.
If building a coil system, I believe that feeling the correct energies at the correct spots should be one part of the process.
Stick a finger down to the center of the plywood base, and right on that point should be a strong light node, many sensitives will be able to see and recognize right off.
It will feel centered and correct, with an element of intelligence to the field energy bubble, and an element of Spiritual presence.

Dave Lowrance

Wave Phasing


Wave Phasing Diagram

This diagram helps to show how I feel these energies organized in the RA fractal vibration. Hopefully this will assist others to visualize the phases, and how they all combine.
The testing is the final word.


What is the Vibration of Electric Power @ 60 Hz

Frustrated that so many duplications of the Hendershot generator simply do not work, I wanted to feel for myself what we are trying to produce in the iron resonator unit, primarily in the 10 cm bar and 8 cm coil cores.

Fan motor test

I set up an old bathroom fan motor, plugged it in and started tunning the Caliper. The motor is a folded pole motor on laminated iron core and vibrates up any ferris metals held near it.
I wanted to know the "vibration resonance" on the iron, as the magnetic field flips over and over at 60 Hz through the soft iron laminated core of this motor.

I found it at 153.40 mm or 6.039 inches. I felt this as an intense vibration with it's electric component jumping into the calipers!
I made up a soft iron tie wire and went around the house holding it up to fan motors and electric lights, even the computer monitor. In every case I could feel energy radiant from the ends of this wire almost burn into my hand.
Iron has a free electron and it really responds to electro-magnetic fields. By cutting the iron wire to a resonance on this "electron magnetic vibration" it amplifies the energy jumping from the motor to the wire.
This is a sympathetic vibration coupling.


50 Hz

50 hz caliper test photo

Arno reports from Europe, 50 Hz is best vibrating at 151.61 mm and feels to be the power "Source" by Ella, around light bulbs and motors.
184.08 mm [as calculated by Dave L in Alaska off the 60 Hz wavelengths by ratio to the 50 Hz theoretical], also gives a response in Europe.



Sensing AC power

Caliper Testing Results:

50 Hz ==>  184.08 mm was calculated for 50 Hz off the 60 Hz wavelength set sensed by Dave L, placing two active wavelengths for 50 Hz in the 6x and 7x segments of the Ra fractal.
60 Hz ==>  153.4 mm was measured then 126.342 mm was calculated off Arnos sensing of the 50 Hz wave pattern set, then verified by myself in Alaska, placing the 60 Hz fractals in the 5x and 6x segments. [Less distance and more time then 50 Hz]

The structure of a vibration, allows us to tap into AC powers vibration, in various metals, at many different wavelengths or octaves. These ones are what we found present around the 6 inch lengths of the Hendershot basket weave coils for both our power grids.
If the system is using "vibrational feedback looping" to go into self sustaining mode as a generator, then it is likely that a different dimension basket weave coil will be necessary in each country, based on the power grids frequency present there, and what we each feel from it.

Basket Weave Coil Design 1.B


 Sense Wires Photo

A Basket Weave coil designed on the magnetic vibrations found above would have these dimensions. 3.019 inch dowels, and not far off of Hendershots 3" ones for 60 Hz.
Build this form for your power line frequency, and see if you feel the vibrations off it strongly.
Soft Iron tie wire 153.4 mm or 184.08 mm
2 ea 1/8" dowels  76.7 mm  or 92.04 mm
Lay the center of the wood dowels on the ends of the iron wires ends. Touch the three node points, the red circles in the photo! Compare to the energy at the lower corners.

5x stack = 153.4 mm
6x stack = 184.08 mm [coil base pad diameter]

Now carefully slide the copper sense wire up and down looking for the more intense places along the height of the dowels. I get one at 15.34 mm.

Coil Base Construction 1.B @ 60 Hz

Believing now that the Basket Weave Coil system is a Vibration resonating device at 60 Hz of the Irons Electron shell, I have made two different coil base designs, to test each possibility out directly for myself.
The reason I have broken off the concept of a square base is to fully support the platonic form vibration system, and make this experiment more like tunning up Joe Cell tubes.
The circle gives better control of the platonic form vibration.

60 Hz Base Photo

This one holds the most promise for me as it is fully resonate on the caliper reading I took at the top of the document directly off a motor running AC power from the mains.
Now based on a fractal dimension of 30.68 mm,  the wood diameter is a 6x, and the pins are a 5x stack of these to force the light node to the center once the pins are placed
and to force the tension area to the lower corners of the dowels on the 30.68 mm fractal for both dimensions.

Base cutout method photo

Pins all have the exact same distance from the center point where the light node should form at the center. A tool was designed to make this faster and maintain alignment of the drill so the posts come out vertical.

150.00 mm Ra Fractal Design 1.A

A second set was made on the 150 mm distance for comparison.

RA Fractal Base Photo

The paper is first aligned with the pin hole at the center made by the machinists compass, then the paper is taped to the board.
The compass is then used to slowly scribed through the paper and cut out just beyond where the holes will be landing.
Next the 1/8" hole is drilled on the compass center dot and a 1/8" drill bit is stuck tightly in into it, so the drill alignment tool can be slid down over it.
This method seems to be fairly fast and accurate for drilling all the holes.

Compass Photo

Note: By having tested these lengths with accurately cut wires before hand I already know the result of these coil bases even before constructing them.


Adding the Upright Dowels


Basket Coil Base With Dowles Photo

Testing the field, it was best with the entire 7.67 cm above the surface of the 15 mm thick base. This is 1/2 the diameter of the holes at 153.40 mm center to center.
I worked until I got the 91.70 mm from bottom of base to the top of the dowels very close, after tapping the dowels in with a hammer tightly.

Iron vibrates up strongly in the blue Zone, and Copper vibrates up strongly in the Red Zone. [Right Photo]
This shows me the Vibrational spread of the two cones is strongly present on the coil base, as I had hoped to achieve.

Fields Photo

Coke bottle for a size comparison.
Lines showing if the magnetic cores are positioned on the magnetic node area between the two coils, they tend to repel one another rolling apart.
Slide them towards the magnetic bar, they move into attraction and roll together. A good sign of an active energy present reactive with Iron.

Place a hand with fingers spread out over the tips of one of the basket coil forms. Feel the pulsating spin moving around the tips!


Dowel Cutting Setup

Placing the dowel length at 76.7 + 7.5 = 84.2 mm   [For the 60 Hz  Magnetic Rotation Vibration Lengths]
I used a radial arm saw.

Dowel Cutting Setup Photo

The dowels can be cut 6 at a time,stacked 3 high and 2 wide, if care is taken to move through them slowly so the ends do not chip out.
The rear block is added, to set the dowels directly under the curve of the blade, but made a few mm short so it does not contact the blade.
The blade can then be lowered to below the block before starting the motor, to be sure fingers holding the dowels are well clear.



Slide Assembly

Different length Iron and Steel Core can be tied down to the Plexiglass carriage. The 8 cm cores were covered with a red heat shrink tube. In my first design, I wanted at least 8 inches of active sliding area to play with so I can intercept any angle from the Basket weave coils. The plywood base is right off the spreadsheet for 60 Hz resonance calculations in the reference section. Appearing is an energy node about 8.4 cm in from the ends which may be useful in the tunning process.


Layout 1.B


Layout 1A

If the Precession cone off the magnets ends, at roughly 45 degrees, is angled to intersect the center of the Basket weave coil, you can feel the adjustment of the slider cores shift on the capacitor as they are slowly moved.
If the transformers are aligned with corners crossing the center of the Basket coil, then you can feel the adjustment in their iron cores vibrate up as well. These are some possible energy coupling dynamics from layout.
It was noted when setting the Capacitor inside the coil base there was a radiant vibration on the left post. After exposure to the magnetic resonators vibration cone, this energy shifted to the right post and drew inwards.
The shift was permanent.

Feeling the Precession Cone of a magnet Experiment 8

The Basics of NMR
[Comprehension of the Precession motion in a magnetic field]


Weave Wind Test

In this test I allowed the wires to twist CCW between each dowel, to see if this would increase the EM results.

NMR [nuclear magnetic resonance]- The Pole of a magnet is not stationary, it is in motion sweeping out a conical section of space off the pole, at approximately 45 degree angle off the end of the magnet.
Because this happens so fast, up in the Ghz ranges, the magnet appears to us to have a stationary pole with wide width. The poles are however precessing in a circle, moving CCW as if the magnet was physically spinning in a cone pattern.
The copper resists this motion of the magnetic field, as it approaches the magnet. However because the frequency is very high it is not enough to dislodge electrons in the copper medium. No current flows.
To get current flowing in the wire, a lower frequency will be necessary to inject on top of this energy form slow enough to move electrons between atoms.

I do not know where the precession cone will appear in a horseshoe magnet, but the 45 degree angles should be found somewhere off the poles by palming them while changing the gap distance.
A quick try with a small horseshoe shows the 45 degree lines of vibration present both downwards and upwards off the two ends of the poles altering the geometry but still providing the cones intersecting the Basket coils on only one side.

Magnetic Precession

I believe one of these conical precession motions must cut each basket coil on only one side of it's rotation. Thus if the magnet is between the basket coils, and both sides of precession cuts the basket wires, they cancel out.
This precession motion, coming off each side of the magnet will be 180 degrees out of phase between the two basket coils.
If this observation is true, then the magnet must be mounted slightly above the basket coils, but consider that with the magnet aligned non centered, one side of the sweep would cut less copper then the other and at different angle.

Concept Drawing

Vibration Cones Drawing

Basket Wire Height Testing


Basket Wire Height Test Photo

Photo showing if the wire is set over an active height on the dowel pin, then tunning the resonators core gap distance can be felt on the wires ends even more strongly.
This energy can become very hot and finger numbing, radiant into the room, but testing with an EMI meter reveals there is no measurable EM on the wires as of yet.
The room warms up slightly, but there is no EM microwave radiation, only microwave vibration.

1st Build


150 mm Basket Coil Build


Standard Components

For the first build I followed the video fairly closely. Resonator is made to spec, basket coils are 150 mm separation on dowels, with 7 cm height.
Wire was ordered from China to spec. 1.5 mm wire [yellow and gray] has thicker insulation then the video, but seems to resonate with the 150 mm fractal nicely.

If the gap on the resonator is set to 15.07 mm [copper atom resonance] the baskets vibrate up nicely, showing that the slider on the resonator is just like having a caliper in the circuit.
One can tune any layer of the copper atoms to become coherent, thus we can stop worrying about wire length resonance, if the goal is to couple with the copper proton shell.
Coils in Opposition   [Copper layers are charted here.]


150 mm Baskets Wired


Side View Wired

Resonator coils were wound with .95 mm wire 40 turns.
Solder was used on the initial connections for quick polarity changes, and little concern for neatness on this prototype. It is a test for functionality, and very similar to the mystery video. Wires left long for repositioning experiments.

Bottom View

Bottom View Wired

153.4 mm sensing wires to right used to position components for a 60 Hz rolling magnetic field resonance. Transformers were set up at 2x center to center of the mass, and then started to feel much better then the random layout did.
Baskets were set to a 3x separation of the 153.4 mm fractal. Capacitors were then adjusted to be 153.4 mm triangles center to center, and this really improved how it all felt to work around, with everything in sync. No more headache!
Finally the gap distance on the slider was left to resonate up the transformers on the 153.4 mm fractal, and all then felt right with the world.
Even though this build did not light the bulb, it is quite a thing to mess with vibrationally, as it is rich with self generating vibrations on all the components.


Top View and Basket Wiring


Top View Wired

You should be able to see the coils bottom and top wires on this photo. They do feel different.
I played with the resonator bar, and ended with it set up like a chime, the two plastic spacers between the magnet and the bar are set in from the edges by 22.4 percent of the length.
This is the same you would set up a chime, so the bar can vibrate up physically. I also tried end spacing for a mass vibration. Neither proved effective for generating a 60 Hz vibration.

I also tried wiring both cores of the resonator first like the print, then with both windings crossed at one end, as shown in the photo above.

There are adjustments that can cause the light bulb to warm up to the touch, they are totally vibrational responses, and not electrical that I can tell.
If you take the 153.4 mm copper wire and hold it along side each of the basket coils, you discover that is where electrical energy seems to pop up. It comes up at the middle of each basket coil winding on the outside.
This is exactly where Hendershot wound his L1 as I recall, and it now makes sense.


Progression

Much disappointment in realizing the mystery video is not authentic, and the build produced nothing real as to power output.
The build did however produce some effects worth further investigation.
It was noted that the wire length of a wrap on the coil form came very close to a fractal from the Schumann resonance chart. [Reference Section]
If the coil could span 60 dowels, it would have a wire length landing exactly on one of the distances. [610.79 mm]

Schumann Super Octave 1/90x Fractals










Earth Diameter
Circumference
Frequency @ 300,000,000 m/s
12756000.00000000000000 meters 40074155.88919140000000 meters 7.48612150008915 Hz
141733.33333333300000 meters 445268.39876879300000 meters 673.75093500802300 Hz

1574.81481481482000 meters 4947.42665298659000 meters 60637.58415072210000 Hz

17.49794238683130 meters 54.97140725540660 meters 5457382.57356499000000 Hz

0.19442158207590 meters 0.61079341394896 meters 491164431.62084900000000 Hz

0.00216023980084 meters 0.00678659348832 meters 44204798845.87640000000000 Hz


































Coil Diameter
Circumference


194.42158207590300 mm 610.79341394896200 mm


2.16023980084337 mm 6.78659348832180 mm


From the Schumann Super Octave Spreadsheet

153.4 mm Diameter Experiment

Creating a platonic form Schumann resonance on the coil base. By wrapping one direction 20 posts then reversing back over to the start, a scalar canceling coil will set up a vibration on the base.
The wire length will be 2/3 of the 610.79 mm resonance from the earths field.

Coil Photo

Photo to the left shows the first canceling coil spanning 20 posts. No matter how long you leave the leads it still vibrates up on the Schumann Fractal.
Middle shows second coil added and at the center post both coils now overlap by one post width. The purple and black lines show each coils ends.
Photo to the right shows all three coils now made, a total of 60 post wraps on a 57 post base. Three wires pointing inwards and three pointing outwards.
Three of the posts now have two wraps around them, and the rest have only one on each side.

The purpose of this sort of a coil system is to set up a bubble of vibration around the base of the coil that is balanced and feels good to work around.
The question, can it be modified to produce a rotating magnetic field? At this dimension it certainly vibrates up soft iron, with the same feel that 60 Hz power does.

Schumann Coil

Nice Vibration!

Resonating Schumann with one Continuous Wind

By placing a circle wrap on every 19 th dowel, 3 each of these, it creates a 20 dowel fold back, causing the Schumann resonance to come up strongly on the basket coil system.

Schumann Coil Wind number 2

This increases the wire length by about 3.5 dowel lengths, necessary to resonate the 610.79 mm fractal.
The steel core set inside, after only 16 wraps, vibrates up strongly, with a down shift of 16 x off the 610.79 fractal.
This creates 3 each odd dowels with 2 x the wire height on it, leaving too little room to finish the coil height of 64 turns.

Deriving the 64 turn Basket Wind

OK so how would I set up a coil on this basket to resonate with 60.5 dowel lengths, if there are only 57 dowels on the ring?
I would try to set up a wire length that is very close to 60 x 610.7934 mm. Each wave will be 60.5 dowels in length.

60.5 dowels x 60 waves  =  3630 dowels
3630 / 57 =   63.684 wraps = 63 wraps with 39 extra dowels on the last wrap.

Now if I use my 150 mm diameter baskets, the length will be closer to 60.8 dowels

60.8 dowels x 60 waves  =  3648 dowels
3648 / 57 = 64 wraps

This cannot be a coincidence! [Also it may indicate why so many builds miss the mark.]

On this coil the wire lead in length is not critical. Only the number of dowels it is wound around from end to end of the wire, where the wire enters and exits the coil system.
The closer you get this wire lengths to 60 x 610.7934 mm =  36.647604 meters of wire, between entry and exit points, the stronger will be the coupling to the Schumann resonance energy system.

I do not know if it is possible to mark a wire that long and then wrap it on to the nearest dowel at that mark on the wire, it is an awkwardly long measurement to make.
So one must make several winds on the coil, mark the wire, and then take it off and measure it accurately, then do all the math over again for your specific coil and wire size, to get the correct dowel count.
There will be some variable in the dowel sizes and the drilling process, as well as the wire diameter.
This will effect the accuracy, so adding an extra post or removing one from the 64 turns may be very practical to increasing the energy, if you can stay aware and track the wire length on this coil.

Down Shift Coil Designs - 153.4 mm base

A quick calculation now to see if we could consider a 90 x down shift coil at the base, or any other possible combinations.

90x         60.8 * 90 =  5472         5472 / 57 = 96 turns           54.971 meters of wire

60x         60.8 * 60 = 3630          3630 / 57 = 64 turns          36.6476 meters of wire

30 x        60.8 * 30 =  1824         1824 / 57 = 32 turns          18.3238 meters of wire

15x         60.8 * 15 =  912             912 / 57 = 16 turns           9.1619 meter of wire

All these go evenly onto the basket coil. Others can be calculated but they will not come out as even turns. So as you are winding this coil, when you get to the 16 th turn, on the post you complete it, you should feel a definite down shift happen as you lay the wire around the last post.

12 Turn coils

57 *12 turns =  684 dowels  / 60.8 =  11.25 waves =  6871.42575 mm

A one quarter wave canceler!
The 12 turn coils are vibration cancelers. They will suppress the 610 mm vibration wave.
11 is a prime fractal stack and will not down shift, the .25 x will generate an out of phase reflection and cancel the vibration.

Best Guess, this is how electric current is created from vibration.



Platonic Form Bubble Generator


Platonic Form Bubble

All self powering systems must at some level access the natural orbital powering system pattern.
Perceiving the components in this way as a set of orbital rings for a free standing, self sustaining, energy form in Space, gives the project true meaning for me, as I have already experienced these type of field bubbles with vibration directly and know they work.


Outer Basket Coil L4 Analysis - Tapping the energy of mass

Measured length of outer coil L4:
491 mm per turn

14 turns x 491 mm =  6874 mm = 6.874 meters on the coil

610.7934 was measured to be on a 12x octave with sub fractal nodes appearing at  50.89945 mm down it's length.


1/144x Triad 5

41.4472653322383
13.1930743105342

40.2395484124644
12.8086460752587
5 39.0670227205462 mm 12.4354195557166

37.9286628319844
12.0730683491523

36.8234732017542
11.7212755637423

(41.4472 x 2) squared =  6871.5 mm
 = 490.82 mm per wrap  14 turns


Converting now to this fractal is a frequency shift upwards off the main coil.
An upwards shift will place high frequency just outside and create an inertial effect on the system of 12 x, as it does in a Joe Cell bubble on a car.

Setting 135 x of this at 50.89945 mm = a wire length of  6871.42575 mm

6871.42575 / 14 turns = 490.81 mm per turn   [this is .19 mm off my measurement of one wrap but shows clearly what will happen with this coil if it is wrapped tightly over the 64 turn coil]

The outer coil L4 is an up shift of the base Schumann resonance by 135 x of the next higher octave.
Down shift fractals from here are the root factors of 135 [27 x 5] =  [3x3x3x5] It will again down shift to these distances.
There will be 9.6427 segments on each wrap, and at 14 wraps this will be 135 segments exactly.

There is no air gap shown in the wind, however -
I would have made it slightly different, and used a prime stack number for this wire length to maintain the full inertial effect possible.
Indeed my measurements could also be off by some small amount. Lets look closer at a "prime stack" used for this purpose.

Prime numbers near 135 are

Number     Wire length
127             6464.23015 mm
131             6667.82795 mm
137             6973.22465 mm
139             7075.02355 mm

I would wrap the 6973.22465 mm wire length on the coil with ends marked for where to bend it outwards, setting up an "up shift frequency" on that coil also to the 50.899 mm fractal.
This bubble will then drop in weight and resistance to motion through space [inertial quality].

There may be another reason for the 135 [3x3x3x5 down shift] of this fractal on coil L4, but I can not directly see it at present from a vibration standpoint.
If you want to duplicate Hendershot then use his pattern on this one. I am going to try them both.

To make the coil platonic in form we now inspect its diameter and circumference adding a small layer of something onto the basket coil to set it off to the correct distance.
6973.22465 / 14 =  498.087475 mm per wrap

498 mm
per turn  [my own design for the energy bubble]

Cut a 49.8 cm wire length and wrap it around the basket base and see if you feel that one! Wow, now that is an active vibration experience. Now cut a 49.1 cm length and compare this to Hendershots design!

This is only 8 mm longer per turn then what I measured on my first trial for a tight wrap.
If the wire is marked at this distance for each turn, and the marks aligned, three spots of hot glue will hold the coil at correct diameter over the center position of the 64 turn coil on the basket.
On the last mark the wire is bent 90 degree out from the coil so it will act to reflect vibration end to end.
One should feel the energy bubble form on the entire basket and go into a mass reduction mode as these wires are bent outwards from the coil at 90 degrees.

These sort of small adjustments to "turn count" and "coil diameter", done naturally by an intuitive, may be of great importance if your goal is to set up a self sustaining vibration on the Basket.
If you want greater spacing then use the 139 prime fractal for this coil wire length or choose an even larger prime number.
By doing this, one may well avoid having to use psi connection to activate the field bubble on the system.




Regrouping

Calculating the error of using the 150 mm diameter coil versus the 5 - 15/16 inch diameter basket coil.

7.541 mm - 7.5 mm = .041 mm  longer on the coil radius

.041 x 2 = .082 mm       longer on the coil diameter

.082 x pi = 0.257 mm    longer on the coil circumference

64 turns x 0.257 = 16.487 mm    longer on the base coil wire length

That's 1.6487 cm longer. Approximately 2 posts distance!

While I can then compensate by over winding the 150 mm coil by 2 more posts, my replication will not be authentic!

This will put Smokey and I on the same page exactly, as he did not use the new video for this dimension to begin with.

I need to rebuild the two basket coil forms.



Deriving the Hendershot Dimensions directly from the Schumann Fractals



Circumference
Diameter

58320.6574625900000
18564.0418390809000

56621.2728536101000
18023.1109176140000
1 54971.4060000000000 mm 17497.9419872230000

53369.6140217407000
16988.0757649331000

51814.4960823738000
16493.0663506509000


32986.1327013018000
10499.8121457948000

32024.9616744093000
10193.8619056215000
2 31091.7978634977000 mm 9896.8266391793700

30185.8251763990000
9608.4465762633800

29306.2513007610000
9328.4695160187900

                           Circumference                                       Diameter

1079.9044854507900
343.7442738532060

1048.4375380330500
333.7280334021130
8 1017.8874946500000 mm 324.0036525699450

988.2276379655820
314.5626269645010

959.4320291505660
305.3967000000000

                          Circumference                                        Diameter

648.0073051398890
206.2671315453430

629.1252539290010
200.2567879734890
9 610.7934000000000 mm 194.4215776358110 mm

592.9957113526740
188.7563973881460

575.7166231374870
183.2562927850100


117.2483860944220
37.3213204329488

113.8319276485550
36.2338279338931
12 110.5150201534610 mm 35.1780234866476 mm

107.2947628298820
34.1529837444964

104.1683394233180
33.1578122657907



11.9989387272310
3.8193808205912

11.6493059781450
3.7080892600235
16 11.3098610516666 mm 3.6000405841105 mm

10.9803070885065
3.4951402996056

10.6603558794507
3.3932966666667


All these fractals will draw a coupling energy from the Schumann Resonance.
They represent sets of 5 orbital ring groups on the various layers of vibration generated by the Earth.

Seen from group 1 the energy bubble we are tapping into spans a full 18.564 meter diameter shown in the first group at the top.
This outer ring is coupled into the 5" tube inside the basket at 5.0755  inches diameter by a 144 x multiplier.

The Basket coils diameter is very near the 8th groups bottom diameter, and is found to be ~1/2 of the 305 mm fractal.
The dowels and base are also tied to the smallest number on the chart at 3.393 mm.

The 64 turn coil couples into the 2nd triad directly as a wire length. The longest fractal we have a material element for down shift.
The capacitor sets physically in the 144x bubble at 5.0775 inches diameter, and couples also into the 12 th triad to extract EM from it's top and bottom layers.

The 12 Turn coils use a 1/4 wave canceling format to convert the 610 mm vibration wave into EM directly


Diameter of the Basket Coil and Dowel Spacing


Basket Photo

On the diameter side of the number blocks in triad 8 we see 305.3967 mm. Each coil is resonating on this fractal length.


1079.9044854507900
343.7442738532060

1048.4375380330500
333.7280334021130
8 1017.8874946500000 mm 324.0036525699450

988.2276379655820
314.5626269645010

959.4320291505660
305.3967000000000

305.3967 / 2 =  152.6985 mm  = 6.0117 inch

Set a SS caliper to 152.7 mm to test this. [It is a rather strong connection and feels right with coupling to the earth.]

This is 90 x of the smallest dimension on the chart.The smallest dimension on the chart is about the width of the dowels at 3.393296666..mm
From the 16 th triad diameters. See the bottom number on the right.
1/8" dowel if cut perfect is 3.175 mm which should be 0.218 mm under. However I measured mine at 3.39 mm!


11.9989387272310
3.8193808205912

11.6493059781450
3.7080892600235
16 11.3098610516666 mm 3.6000405841105 mm

10.9803070885065
3.4951402996056

10.6603558794507
3.3932966666667

90 x = The distance from dowel tip to tip through the base
45 x = The diameter of the basket center of dowel to center of dowel
22.5 x = The height of the dowels

Not surprising it is directly related to the diameter of the earth by a power of 90 x.
This is slightly larger then Hendershots diameter at [15.08125 cm  =   5.9375 inches]  +  0.0742 inch = 6.0117 inch.

Diameter Drwg

Drawing showing Hendershots Dowel placement with respect to the Schumann fractal at its lowest dimension on the project.

Hendershots count ratio 150.8125 mm / 3.393296666 = 44.44424 [could this be on purpose???]
Once again I am inclined to experiment now with two possible layouts for the base dimension.
44.444 x  and   45 x

Consider Hendershots length from tip to tip, down the dowel 76.2 mm across the base 150.8125 mm up the dowel 76.2 mm = 303.2125 mm.
1 x = 3.393296666 mm
89 x = 302.0034 mm   a prime stack count
90 x =305.3966994 mm   a downshift fractal

89.356 x = 303.2125 mm  Hendershots length

It is assumed the vibration will travel down into the wood of the base and find it's 90x position, downshifting the 305 mm wave into 4 sections on the coil Base. Dowel height then will become less critical.


Dowel Height

1/2 the separation distance of the dowels.
Dowel spacing diameter 152.6985 mm / 2 = 76.34925 mm  =  7.634925 cm =  3.0059 inches
We want that much sticking up above the wood base, so dowels will be longer to about 1/2 the thickness of the plywood.

Wire Stack
24 Ga enameled [0.51 mm measured] x 64 turns =  32.64 mm
20 Ga PVC [1.16 mm ] x 24 =  27.84 mm
Total wire height on Dowels =  60.48 mm

This is the same as Hendershots design at 3 inches.

Diameter of the Base Plywood

On the diameter side we locate the numbers most convenient for a wider base. Then look to pull the frequency up.
From the 9th Diameter triad, on the right side data block.


Circumference
Diameter

648.0073051398890
206.2671315453430

629.1252539290010
200.2567879734890
9 610.7934000000000 mm 194.4215776358110 mm

592.9957113526740
188.7563973881460

575.7166231374870
183.2562927850100

206.267 mm =  20.6267 mm =  8.251 inches   This one will generate more lower harmonics
200.257 mm =  20.0257 mm =  7.884 inches   This one will generate lower harmonics
194.42   mm =  19.442 cm  =    7.654 inches   This one will resonate directly with the 64 turn coil
188.756 mm =  18.8756 cm  =  7.431 inch      This one will vibrate on the next orbital inwards as a higher harmonic generator
183.256 mm =  18.3256 cm =   7.2148 inch    This one will vibrate as the next higher harmonic and generate two layers

A perfectionist would choose one of these to support the field bubble vibration. You can cut some wires to feel these choices.
The shorter ones belong outside the basket to conform to Hendershots inverted Gravity bubble pattern I would favor the shortest one.  18.3256 cm diameter for the base.

Hendershot did not use circular bases, but placed all the dowels down into the board the unit was constructed on.

64 Turn Wire Length  150.8125 mm Diameter

Smokey "Measured about 5 turns and came out with an average of 515 mm x 64 = 32960 mm."
Hendershot probably also had 515 mm wire loops on his 64 turn coils and would have come out very close to this wire length.

Triad 9

Circumference
Diameter

648.0073051398890
206.2671315453430

629.1252539290010
200.2567879734890
9 610.7934000000000 mm 194.4215776358110 mm

592.9957113526740
188.7563973881460

575.7166231374870
183.2562927850100

1/12x Triad 9


54.0006087616574
17.1889276287786

52.4271044940834
16.6880656644574
9 50.89945 mm 16.2017981363175 mm
49.4163092793895
15.7296997823455

47.9763852614573
15.2713577320842

32960 mm /  575.7166 mm =  57.250     This is 1/4 wave canceling on the end of 57 waves at 575.72 mm  [12 x upshift see block 2]
32960 mm / 47.9763852614573 =  687 x

687x = [229 *3] prime roots

Harmonics
687x    =  32960 mm
229x    =  10986.59 mm
12x      =      575.7166 mm [supressed or canceled]
3x        =      143.929 mm
1x        =        47.976 mm

5.66 mm * 91 =  515.06 mm [Copper Electron Vibration]

This is exactly Hendershots Dimension for the 64x coil using 24 gauge enameled wire.

12 Turn wire length

L2 & L3 574.6 mm each wind for a total of 6895.2 mm excluding hookups.

648.0073051398890
206.2671315453430

629.1252539290010
200.2567879734890
9 610.7934000000000 mm 194.4215776358110 mm

592.9957113526740
188.7563973881460

575.7166231374870
183.2562927850100

1/12x Triad 9

54.0006087616574
17.1889276287786

52.4271044940834
16.6880656644574
9 50.89945 mm 16.2017981363175 mm
49.4163092793895
15.7296997823455

47.9763852614573
15.2713577320842

32960 / 6895.2 =  4.780 x

5.66 mm * 101.5 =  574.49 mm [Electron up shift]

Home Built Capacitor

Capacitor Tube

Tube Diameter   [144 x  down shift]

Diameter  =   5" =  127 mm  = 12.7 cm

Triad 1 Block

Circumference
Diameter

58320.6574625900000
18564.0418390809000

56621.2728536101000
18023.1109176140000
1 54971.4060000000000 mm 17497.9419872230000

53369.6140217407000
16988.0757649331000

51814.4960823738000
16493.0663506509000

1/144x  off Triad 1 block

405.0045657124310
128.9169572158390

393.2032837056260
125.1604924834300
1 381.7458750000000 mm 121.5134860223820

370.6223195954220
117.9727483675910

359.8228894609290
114.5351829906310

The two top numbers from the spread sheet, from triad 1. These are 58.32 meters of wire circumference, on 18.564 meters diameter.
This is a much lower frequency on the system and lies outside our project dimensions as an invisible part of the field bubble.
Now divide these by 144 x  for a direct 12 x 12 octave access to this outer layer, and place that ring inside the basket coil. [See the block labeled 1/144x]
This creates a cross over from outside to inside, with an Aetheric octave structure, and just happens to land on 5.0755 inches.

mm / 144 =
405.0045657124310000
128.9169572158390000

Circumference   405.0045 mm  =   15.945 inch   circumference
Diameter           128.9169 mm   =   5.0755 inch  diameter

The capacitor will build outside the 5" tube and cross this fractal at 1.9 mm of thickness. or about .95 mm on each side of the tube. Keep in mind where this resonant ring lands on the capacitor build out. It is a major central point of convergence for the 18.564 meter field bubble all around the project.

This is the same dimension Hendershot used.

Tube Construction

0.35 mm thick - stock Aluminum

128.5669 mm  inner ring diameter
128.9169 mm center of meat diameter
129.2669 mm outer ring diameter

Inner disc form  128.5669 mm wood disc for moulding the tube with 1 wrap of aluminum sheeting outside it.
Outer disc mould  129.2669 mm cut a hole in a larger ring, then roll the Aluminum inside it, then let it expand to fill the hole and tape or rivet the ends.

Cut Aluminum to 3 inch height, and  405 mm long = 40.5 cm long
Roll onto inner ring bending into a tube - remove inner ring - stick inside outer ring mould
Secure seam

Tube Height = 2.75"  =  69.85 mm

Height of the capacitor tube is obscure, showing 2.75" on one diagram and 3" on another.
We do not really know the height of the capacitor plates as they were removed from old electrolitic capacitors, and are wrapped on the tube, or let to expand to touch the basket coils wires, then wax poured in between the plates and the tube.
What we can discern is that they will vibrate and must both be made identicle.

Triad 2 block

32986.1327013018000
10499.8121457948000

32024.9616744093000
10193.8619056215000
2 31091.7978634977000 mm 9896.8266391793700

30185.8251763990000
9608.4465762633800

29306.2513007610000
9328.4695160187900

1/144x  off Triad 2 block

229.0703659812620
72.9153621235749

222.3955671833980
70.7907076779270
2 215.9152629409560 mm 68.7279627720790

209.6237859472160
66.7253234462735

203.5156340330620
64.7810383056861

Recommend using an adjustment on one of the following lengths for tube and plate heights.

72.420 mm =  2.851 inches  =  3 x 24.14 [copper diagonal mediator vibration]
70.790 mm =  2.787 inches
69.850 mm = Capacitor Tube Height
68.727 mm =  2.706 inches

66.725 mm =  2.627 inches
64.781 mm =  2.550 inches


Capacitor Plate Lengths



Capacitor Plate Layout

Height

2.75 inchs  =  6.985 cm = 69.85 mm [see sugestions above]

2.851 inches = 72.42 mm  = 3 x 24.14 [copper diagonal mediator vibration]

1- 91.25 inch long foil - floating
~5.8 wraps on a 5 inch diameter base tube


Length 1

[The first layer on the capacitor, is not connected to anything, so must have a vibrational function.]

91.25 inch =  2317.75 mm

2317.44 mm = 24.14 mm x 96  [Copper Diagonal Mediator Down shift]
2317.74552 mm  = Schumann up shift
2317.75 mm = Capacitor neutral plate length
2317.77 mm = 5.66 x 409.5 =   [Copper electron vibration up shift]

From the 12 Triad - Bottom number


117.2483860944220
37.3213204329488

113.8319276485550
36.2338279338931
12 110.5150201534610 mm 35.1780234866476 mm

107.2947628298820
34.1529837444964

104.1683394233180
33.1578122657907

104.1683394233180 * 22.25 =  2317.74552 mm    [Quarter wave end section up shift by 12 x]
104.1683394233180 / 12 =  8.6806
2317.74552 / 8.6806 =  267
267 =  3 * 89

1/12x  Triad 12

9.77069884120187
3.11011003607906

9.48599397071294
3.01948566115776
12 9.20958501278845 mm 2.93150195722064 mm

8.94123023582347
2.84608197870804

8.68069495194312
2.76315102214922

Harmonics

2317.75 / 267 = 8.68 mm
2317.75 / 89  =  26.042 mm
2317.75 / 3 = 772.582 mm

Appears to be a canceling fractal

Identical to Hendershots recorded dimension.

Lengths 2

40 inches [1016.00 mm]

1015.64 = Schumann upshift
1015.97 = 179.5 x 5.66 mm [Copper electron up shift]
1016 mm = capacitor plate length
1016.4 mm = 140 x 7.26 mm =   [Copper nuclear down shift]

12 Triad bottom number


117.2483860944220
37.3213204329488

113.8319276485550
36.2338279338931
12 110.5150201534610 mm 35.1780234866476 mm

107.2947628298820
34.1529837444964

104.1683394233180
33.1578122657907

104.168339423318 x 9.75 = 1015.6413093773505 mm  [rounds off to 1016 mm]    [Quarter wave end section up shift by 12 x]
104.168339423318 / 12 =  8.6806
1016 / 8.6806 = 117
117 = 3 * 3 * 13

1/12x Triad 12

9.77069884120187
3.11011003607906

9.48599397071294
3.01948566115776
12 9.20958501278845 mm 2.93150195722064 mm

8.94123023582347
2.84608197870804

8.68069495194312
2.76315102214922

Harmonics
1015.64  / 117 =  8.68 mm
1015.64 / 13 =  78.126 mm
1015.64 / 9 =  112.849
1015.64 / 3 =  338.547 mm

Identical to Hendershots recorded dimension.

Length 3

40.375 inch = 1025.525 mm  = 102.5525 cm

1024.76 mm = 68 x 15.07 mm [Copper Proton Vibration down shift]
1025.475 mm = 141.250 x 7.26 mm [Copper Nuclear mass vibration up shift]
1025.525 mm = capacitor plate length
1025.923378 mm = Schumann up shift

12 Triad top number


117.2483860944220
37.3213204329488

113.8319276485550
36.2338279338931
12 110.5150201534610 mm 35.1780234866476 mm

107.2947628298820
34.1529837444964

104.1683394233180
33.1578122657907

117.248386094422 * 8.75 x = 1025.923378 mm   [Quarter wave end section up shift by 12 x]
117.248386094422 / 12 =  9.770
1025.923378 / 9.770 =  105
105 =  3 * 5 * 7

1/12x Triad 12

9.77069884120187
3.11011003607906

9.48599397071294
3.01948566115776
12 9.20958501278845 mm 2.93150195722064 mm

8.94123023582347
2.84608197870804

8.68069495194312
2.76315102214922

Harmonics

1025.923378 / 105 = 9.770 mm
1025.923378 / 7 =  146.560 mm
1025.923378 / 5 =  205.184 mm
1025.923378 / 3 =  341.974 mm

Identical to Hendershots recorded dimension to +0.4 mm on 1025 mm length.

Collective up shift Fractals generated by the Capacitor

2317.75 / 267 =             8.68 mm
1015.64  / 117 =            8.68 mm
1025.923378 / 105 =    9.770 mm
2317.75 / 89  =            26.042 mm
1015.64 / 13 =             78.126 mm
1015.64 / 9 =             112.849 mm
1025.923378 / 7 =     146.560 mm
1025.923378 / 5 =     205.184 mm
1015.64 / 3 =             338.547 mm
1025.923378 / 3 =     341.974 mm
2317.75 / 3 =             772.582 mm

I can not say what these have to do with EM generation but I can verify they do vibrate up!
I did not expect the home made capacitor to be shooting frequency up this far. [8 to 9] mm wavelengths, about the distance between the dowel posts, then up again to 1/12 of that.
Roughly calculated above at  8.26316 mm

These harmonics again shift due to many 1/4 wave relationships and shoot up another 12 x to dimensions too small to work with.
Example 9.77 / 8.68 = 1.125
The harmonics are filled with these 25 relationships, if you take the numbers further. The 1/4 and 1/8 relationships all fit onto another 12 x hop into smaller octave of dimension.
This is how vibration up shifts, on a 12 x harmonic.
These capacitor plates seem to be filled with up shift energy ratios if one can make them accurately enough.



Smokeys 2nd Build

Coil Stack Photo

L1 worked out at 515 mm each wind for a total of 32960 mm excluding hookups to terminal board.

L2 & L3 574.6 mm each wind for a total of 6895 mm excluding hookups.

0.9 mm under the 575.7166 fractal

L1 = 515 mm x 64 = 32960 mm
L2 & L3 = 574.6 mm x 12 = 6895 mm

Height of L1 = 32 mm, L2 & L3 each at 24 mm for a total of 80 mm (3.15").

This is over 3 inches, the coils do not fit on a Hendershot dimension. [L2, L3, wire is thicker]

My dowels are 100 mm with 10 mm into baseboard.

The fig '8' silicone speaker wire I am using actually worked out to be 20.5 awg by area calculation but did equal the other stiff insulation 20 awg irrespective of the former being labelled as an 18 'Gauge'.

Inductance:
L1 = 911 uH and same as the helical coil calculation.
L2 = 39.54 uH
L3 = 37.97 uH
Both slightly higher than the calculation at 34.2 uH probably due to the insulation.

Next is to wrap the 14 turns of L4 around the centre of L3 and do some resonance testing.
Phi and length only applied to the 14 & 16 awg and was a size coincidence.
Basketweave with the smaller wire and larger number of turns is impressive.

Capacitor2

Home made capacitor.

Smokey

Previous Post on L4 as yet not delivered:

Actually higher at 81.9 uH and giving a lower frequency of 199,249 khz.
Wire is 28 awg and close wound in the centre of L3.
0.35 mm with the insulation on and 0.31 mm with it off.
Will now look at this with a 7800 pF capacitor across it and the sig gen and oscilloscope.
This IS the only part of the entire organisation that we are able to discern some information from the empirical.

Beginning now to recognise what is going on with this coil organisation.
L4 injected with a signal peaks at 59 khz with a 6800 pf cap across the terminals and at 57 khz with a 10,800 pf.
Now some interesting results where all the other coils are measured via induction with only the oscilloscope leads connected and the input volt signal unchanged:

L3 bottom Fres = 770 khz with V = 25 volt sine
L2 mid Fres = 588 khz V = 1.1 volt complex as if two frequencies are present and beating against one another
L1 top Fres = 2.0 Mhz V = 2 volt sine

This of course will all change with capacitors added but gives a general idea of frequency expectation and what may be happening.
Liked the voltage increase at Copper L3 and will try to determine what I was inputting but nowhere near the 25 volts.
Input was 1.3 volts and shows the transformer action between L4 and L3 - gain of about x20.
Using electrical insulation tape as the base for winding L4 on L3.

Smokey



Something of a hassle to get a confirmation between the two basketweaves but now happy with results.
Fres of L4 with 6800 pF capacitor across input with readings taken from oscilloscope:
Weave #1:
L1 = 2.0 Mhz 3.3 volt
L2 = 1.724 Mhz 3.8 v
L3 = 769,231 Khz 25 v
L4 = 57,143 Khz 2.5 volt input

Weave #2:
L1 = 2.0 Mhz 3.0 volt
L2 = 1.724 Mhz 3.5 v
L3 = 769,231 Khz 20 v
L4 57,143 Khz 2.5 volt input

These are all induced frequencies coming via L4 and probably L3 and rising up through the basketweaves.
All waves are clean Sine waves and the complex was me not being on the Fres.
This now gives us something to work with being close to the 60 Khz point at L4.
L4:L3 = 1:13.46 with both a frequency and voltage increase.
Will now do some Math with the capacitors in circuit and see what can be made of the mire.
Good to see the frequencies are matching which shows my build to be within some agreement between the two weaves which I see as being of some significance.
Will put up some pics later of the completed coils.

Smokey

Have placed a pic of the completed coil set in my Folder.
Unable at this time to make anything of the frequencies as the schematic
is too complex to decide what capacity to use.
Pi and pHi don't appear to be involved.

Frequency build:
L4 to L3 57,143 to 769,231 is 1:13.5 Voltage build was 1:10
L3 to L2 769,231 to 1,724,000 is 1:2.24
L2 to L1 1,724,000 to 2,000,000 is 1:1.2

Could look at this another way and replace voltage for frequency as we
are transforming up at each step and somewhere in there is a current
amplifier and looking at both L1 and L2 but think the ambient comes in
at L3 in predominance.

Analysing this from results achieved from monitoring at the oscilloscope:
Start volts = 2.5 x 10 = 25 x 2.24 = 60 x 1.12 = 67
So all you need here at the input is 4.5 volts and you have your 110v AC
at the output.


The home-made capacitor is said to be the 'aerial' but is probably the
pulsing core that is so close to all the windings that they all benefit.
Going now to redo the caps to see what real capacity we can obtain by
cleaning.

Smokey


This document is in development, It will be reduced and shortened at a later date to summarize these discoveries.
(Continued)

Reference Section  **********************


Read First - For downloading pdf, ods, or png Documents

[Right click] on the URL's below, then select [save target as] to a folder on your computer.

.ods files   - OpenOffice.Org  Calc  program - Spreadsheets
.pdf files   - Adobe Acrobat Reader
.png files  - Graphics for Printing Lofting Patterns

Hendershot Construction - New Released Mystery Version pdf

Detailed Instruction for a build at the bottom of the document. Has not been shown to work by anyone to date.

Smokeys Build 2 pdf

A very accurate duplication of Hendershots work, in progress.

Related Documents

Layered Fractals

Schumann Resonance Fractals


Spread Sheets .ods

Schumann Hendershot Phi Calculator ods

[For engineering the field Bubble on the Baskets, inner capacitor, and outer coil L4.]

Spreadsheet for 50 Hz Power Fractals ods

Spreadsheet for 60 Hz Power Fractals ods


Basket Weave Coil Construction Patterns

Circle Of 57.png

The image file can be downloaded here and then printed out for alignment of the holes if using a drill alignment tool.

KS-Bohrschablone.pdf

A file that can be downloaded then printed for hole alignment, reflecting Hendershots recorded dimension of the dowels spacing.


Calculators and Wire Sizes

Wire Gauge Chart - All Sizes

Ham Waves Coil and Antenna Calculators

Helical-Coil-Calculator

Inductance and Resonance Calculators


Materials

Wire

Old List
250 feet #20   red and yellow insulated
100 feet #28   enamel
500 feet #24   enamel

My Wire Calculation
L3 coils #24   enamel          61.07934 cm wave x 60 x 2 coils =  7329.5208 cm / 2.54 =  2885.638 inches / 12 = 240.469  feet  + ends = 250 feet
L1 L2 coils  #20 Insulated   916.9 cm  =  361 inches / 12 =  30.08 feet  + ends  = 32 feet per coil       4 coils of two colors 65 feet each color. Red and Yellow.
L4 coil # 28 enamel             688 cm =  271 inches =  22.57 feet x 2 coils =  45.144 feet + ends = 48 feet

My Wire List
250 feet  #24 enameled                   Amazon.com   24 gauge enameled wire 805 feet       2 rolls         $18.43 each
50 feet # 28 enameled                     Amazon.com   28 gauge enameled wire 2027 feet     1 roll           $18.94
65 feet # 20 Insulated Red               Del City   pn 1120101   Red primary wire 20 Ga      500 feet      $23.10
65 feet # 20 Insulated Yellow           Del City   pn 1120106  Yellow primary wire 20 Ga  500 feet      $23.10

Ok I ended up with way extra on the wire!

Capacitors

2 ea 40 uF 450 vac                       Amazon.com       CBB65 40 uF AC 450 volt 50/60 Hz   $11.85 each
2 ea 80 uF 450 vac                       Amazon.com       CBB65 80 uF AC 450 volt 50/60 Hz   $17.34 each

5 inch diameter home made capacitor

Aluminum Flashing

Roll of Aluminum Flashing for central capacitor construction.  0.35 mm thick  14 inches wide  50 feet long. $88 US

Dielectric Wrap

Roll of Dielectric Wrap used in antenna and telephone cable work. Scrap box.

Transformers

2 each    Enforcer ST-UVDA-W100Q      Seco-Larm     24 or 28 vac/100va     Amazon.com       $45.98 for two

Drill Alignment Tools

Custom made 3/4" bar 8.5 cm long for drilling the holes in the basket coil base

Hendershot Original    7.541 cm

Schumann Perfection  7.635 cm

1/8 inch hole in each end of the bars. V notch at the center of one end for alignment.

Drill Tool


Hendershot Buzzer Fundamentals

Back To PCC menu

Back to ResonantFractals
